723721 LST

Name: 723721 LST
Brand: Lutze
SKU: 723721 LST
Price: 550.19 USD
Availability: OutOfStock

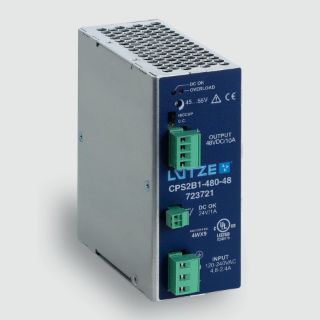

Actual Product May Vary From Image

Product Details

Manufacturer:

Lutze

Manufacturer part number:

723721

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$550.19 / EA

Description

Brand Name

LUTZE

Type

Primary Switched

Description

LUTZE, 723721, Power Supply, Primary Switched, Series: Compact, 120/240 V Input, 24 VDC Output, 480 W Power, 10 A, 47 to 63 Hz Frequency, TS32/TS35 DIN Rail Mounting, Aluminium Case, 56 mm Width, 139 mm Depth, 140 mm Height

Application

For industrial applications

Standards

cULus E249179 | EN 60950/50178/55011/55022/60529 | IEC 61000-4-2/3/4/5/11 | IEC 60068-2-6 | IEC 60068-2-27

Features

-40 to 70 deg C operating/-40 to 85 deg C storage
10 AT or MCB 10A C-curve external fuse
20 to 90% RH, non-condensing relative humidity
4.8 A at 120 VAC/2.4 A at 240 VAC rated current
8AT (non-replacable) internal fuse
94% efficiency
Less than 0.5% load regualtion
Less than 200 mA ripple and noise
Less than 23 A / 0.56 A2s inrush peak current
Greater than 25 ms at 240 V hold up time
Greater than 600,000 hr MTBF
Greater than 68 VDC over voltage protection
Air convection, 100 mm distance top/bottom, 20 mm side cooling
Metal housing material
Parallel operation
Short circuit: hiccup, constant current
Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired

Specifications

Amperage Rating:	10 A
Case Material:	Aluminum
Country of Origin:	TW
Depth:	139 mm
Frequency Rating:	47 to 63 Hz
Height:	140 mm
Input Voltage:	120/240 V
Mounting Type:	TS32/TS35 DIN Rail
Output Voltage:	24 VDC
Power Rating:	480 W
Series:	Compact
Width:	56 mm
