Home / 7250-FR LEV

7250-FR LEV

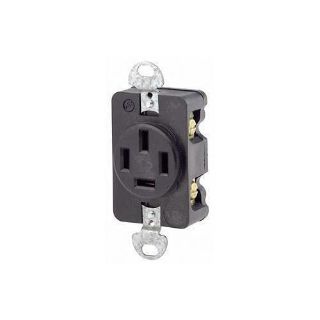

Picture of 7250-FR LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7250-FR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$95.85 / EA

Description

Brand Name

Leviton®

Type

3-Phase Non-Grounding Single

Alternate Supplier #

Grainger - 25LK73

Description

Built of durable thermoplastic, Leviton® power receptacles - in flush mount, surface mount and panel mount versions - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton® wide range of 2.15 in dia wallplates and mounting hardware is included.
Leviton®, 7250-FR, Straight Blade Receptacle, 3-Phase Non-Grounding Single, 120/208 VAC, 20 A, 2 hp, 4 Pole, 4 Wires, NEMA 18-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black

Standards

NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL 498 File No. E13399/E13393 | UL94 V-2 Flammability Rating

Features

  • Impact resistant thermoplastic nylon cover and body
  • Four corner latches securely fasten face
  • Large triple wipe, brass T contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-OFF tabs allow easy 2-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation
  • Box mounting
  • Non-grounding
  • 3-phase
  • 2000 VAC minimum dielectric strength
  • Galvanized steel strap
  • 14 to 6 AWG wire terminal

Specifications

Amperage Rating:20 A
Color:Black
Country of Origin:MX
Grade:Commercial
Horsepower:2 hp
Material:Thermoplastic
NEMA Rating:NEMA 18-20R
Number of Poles:4
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:120/208 VAC
