7252-B-MP-UA FAG

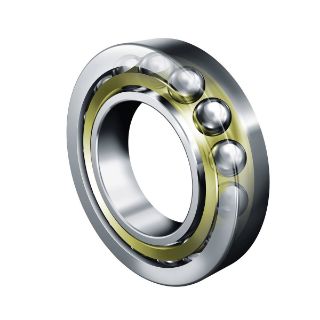

Picture of 7252-B-MP-UA FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
7252-B-MP-UA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$26,122.13 / EA

Description

Brand Name

FAG

Description

Single-row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.
FAG Angular Contact Ball Bearing, Series: 72-B, 260 mm Bore, 480 mm OD, 1 Rows, 80 mm Width, 40 deg Contact Angle, Open Closure, 820000 N Load, Brass Cage, 2030 rpm Maximum, 200 deg C

Features

  • Single row angular contact ball bearings are particularly suitable where bearing arrangements must support combined loads
  • Moderate to high axial loads are present on one side
  • The bearing arrangement must be axially clearance-free or preloaded
  • High speeds are required under higher radial and axial loads
  • 485000 N dynamic/820000 N static

Specifications

Bore Diameter:260 mm
Cage Material:Brass
Closure Type:Open
Contact Angle:40 deg
Country of Origin:DE
Load Capacity:820000 N
Maximum Speed:2030 rpm
Number of Rows:1
Outside Diameter:480 mm
Series:72-B
Temperature Rating:200 deg C
Width:80 mm

Products Specifications

Bore Size
125 mm
Brand Name
FAG
