7280-I LEV

Product Details

Manufacturer part number:
7280-I
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Leviton®

Type

2-Pole 3-Wire Type 3-Duplex Self-Grounding

Alternate Supplier #

Grainger - 5HZE7

Description

Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

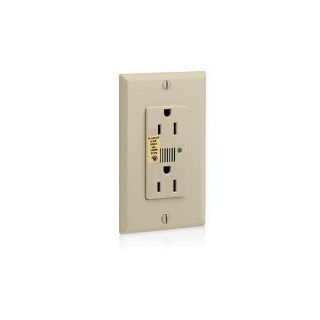

Leviton® Decora® Plus Surge Protective Receptacle, 2-Pole 3-Wire Type 3-Duplex Self-Grounding, 125 VAC, 15 A, 5 kA Short Circuit, Straight Blade Receptacle Outlet, Indicators: Audible Alarm/Light, Back/Side Wired Connection, Surface Mounting, 3.81 in H x 1.7 in W x 1.47 in D Size, -40 to 60 deg C Operating, Polycarbonate, Ivory

Application

Commercial and Industrial

Standards

NEMA WD-1 | WD-6 | UL 498 | 1449 | CSA C22.2 | NOM 057

Features

  • Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
  • Indicator light provides visual indication that equipment is being protected
  • EMI/RFI noise filtering
  • Wide variety of color options aid in identifying different types of equipment or applications
  • Back and side wired design with durable metal mounting strap
  • Point of use protection for up to 18000 A of surge current tota

Specifications

Amperage Rating:15 A
Color:Ivory
Connection:Back/Side Wired
Country of Origin:MX
Environmental Conditions:-40 to 60 deg C Operating Temperature, UL 94 V-2 Flammability Rated
Material:Polycarbonate
Mounting:Surface
Operating Temperature:-40 to 60 deg C
Outlet:Duplex
Short Circuit Current Rating:5 kA
Size:1.7 in W x 1.47 in D x 3.81 in H
Type of Indicators:Audible Alarm/Light
Voltage Rating:125 VAC
