7280-T LEV

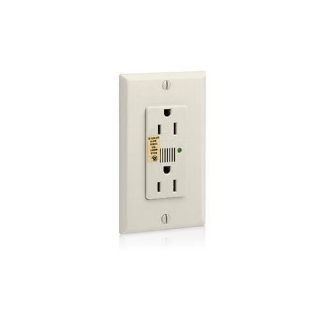

Picture of 7280-T LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7280-T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$120.56 / EA

Description

Brand Name

Leviton®

Type

Duplex Self-Grounding Surge Protective

Description

Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Leviton® Plus Straight Blade Duplex Receptacle, Self Grounding Surge Protective Type 3, 125 VAC, 15 A, 5 kA Short Circuit, Duplex Outlet, Indicators: Light and Audible Alarm, Back/Side Wire/Screw Connection, 1.7 in W x 1.47 in D x 3.81 in H Size, -40 to 60 deg C Operating, Polycarbonate, Light Almond

Application

For use to protect sensitive electronic equipment in industrial, commercial and residential locations

Standards

NEMA WD1/WD6 | ANSI C73 | UL 498/1449 | CSA C22.2 Type 3 | NOM 057 | UL94 V-2 Flammability Rating

Features

  • Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
  • Indicator light provides visual indication that equipment is being protected
  • Single, duplex and 4-in-1 versions
  • EMI/RFI noise filtering
  • Wide variety of color options aid in identifying different types of equipment or applications
  • Back and side wired design with durable metal mounting strap
  • Point of use protection for up to 18000 A of surge current total

Specifications

Amperage Rating:15 A
Color:Light Almond
Connection:Back/Side Wire/Screw
Country of Origin:MX
Material:Polycarbonate
Mounting:Surface
Operating Temperature:-40 to 60 deg C
Outlet:Duplex
Short Circuit Current Rating:5 kA
Size:1.7 in W x 1.47 in D x 3.81 in H
Type of Indicators:Light and Audible Alarm
Voltage Rating:125 VAC
