72LP075 BRN

Name: 72LP075 BRN
Brand: Regal Rexnord
SKU: 72LP075 BRN
Price: 338.88 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1056456

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$338.88 / EA

Description

Brand Name

Browning®

Type

Type 13

Description

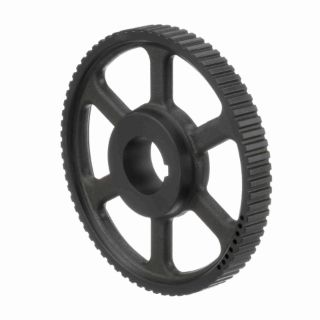

Browning® Gearbelt® Synchronous Timing Pulley, Type 13, Split Taper Bore, 1/2 to 1-3/4 in Bore, 8.564 in OD, 8.594 in Pitch Diameter, 72 Grooves, 3/8 in Pitch, 1 in Face Width, 3 in Diameter Hub, 5/8 in Hub Projection, P1 Bushing, 2-3/16 in Overall Length, For Use With: 3/4 in W Type L075 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore

Specifications

Bore Diameter:	1/2 to 1-3/4 in
Bore Type:	Split Taper
Bushing Type:	P1
Country of Origin:	US
Face Width:	1 in
Hub Diameter:	3 in
Hub Projection:	5/8 in
Number of Grooves:	72
Outside Diameter:	8.564 in
Overall Length:	2-3/16 in
Pitch:	3/8 in
Pitch Diameter:	8.594 in
Suitable For Use With:	3/4 in W Type L075 Belt
