7300333 RND

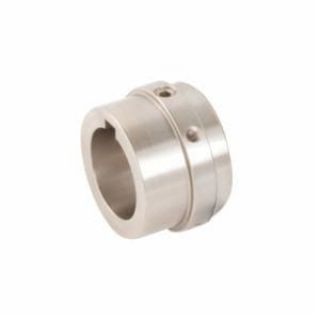

Rexnord® Omega® 7300333 Straight Stock Bore Coupling Hub, 05 Coupling, 1-3/4 in Dia Bore, 1-3/4 in Length Through Bore, 2-3/4 in Dia Hub, Steel
Manufacturer: Rexnord
Manufacturer part number: 7300333
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 3
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$110.53

Product Details

Brand Name

Rexnord®

Type

Straight Stock Bore

Description

Rexnord® Omega® Coupling Hub, Straight Stock Bore, 05 Coupling, 1-3/4 in Bore Dia, 2-3/4 in Hub Dia, 1-3/4 in Hub Length, 3/8 in W x 3/16 in D Keyway, 7500 rpm Maximum, 1-3/4 in Length Through Bore, 1/2-13 Screw, Steel

Application

For use with Omega® E/ES/ES-R series elastomeric couplings

Features

A hub is the part of a coupling that attaches the coupling to the shaft of the driver or driven equipment

Specifications

Bore Diameter:1-3/4 in
Coupling Size:05
Hub Diameter:2-3/4 in
Hub Length:1-3/4 in
Keyway Size:3/8 in W x 3/16 in D
Length Through Bore:1-3/4 in
Material:Steel
Maximum Speed:7500 rpm
Screw Size:1/2-13
