7303W TKN

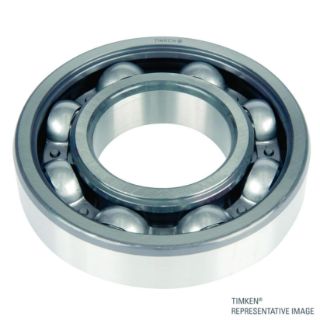

Picture of 7303W TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
7303W C1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$167.87 / EA

Description

Brand Name

Fafnir®

Type

Medium Maximum Capacity

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.
Timken® Fafnir®, 7303W C1, Angular Contact Ball Bearing, Medium Maximum Capacity, Series: 7300, 17 mm Bore, 47 mm OD, 1 Rows, 14 mm Width, 20 deg Contact Angle, Open Closure, 4100 lb Dynamic/2080 lb Static Load, Steel Bearing, 9370 rpm Maximum, -50 to 120 deg C, Uncoated

Application

Agriculture, Chemical, General Industry and Utilities

Features

  • Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
  • Dimensionally interchangeable with the radial 300 series
  • 7000WN product family includes a refined bore diameter
  • The 7300WN series can sustain heavier thrust and combined loads than the 7200WN series
  • A single bearing is suggested for applications in which the thrust load is in one direction or in the case of combined loads, the thrust load is high in relation to the radial load
  • A duplex pair is suggested for applications where thrust is present in both directions or where axial displacement of the shaft must be restricted
  • For exceptionally high thrust loads in one direction, a tandem pair can be used, opposed by a third bearing
  • Size 7303W has a 20 deg contact angle and a steel cage
  • Sizes 7304WN through 7318WN have a 40 deg contact angle and a one-piece, ball-piloted, pressed-brass cage
  • Larger sizes 7319WN through 7330WN have a 40 deg contact angle and a one-piece, outer-ring piloted high-strength machined bronze cage
  • Sizes 7306WN to 7318WN also available with a one-piece, high-strength, machined bronze retainer

Specifications

Bearing Material:Steel
Bore Diameter:17 mm
Cage Material:Steel
Closure Type:Open
Contact Angle:20 deg
Country of Origin:US
Finish:Uncoated
Load Capacity:4100 lb Dynamic/2080 lb Static
Maximum Speed:9370 rpm
Number of Rows:1
Outside Diameter:47 mm
Series:7300
Temperature Rating:-50 to 120 deg C
Width:14 mm

Products Specifications

Bore Size
17 mm
Brand Name
Timken
