7304-B-XL-2RS-TVP FAG

Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.

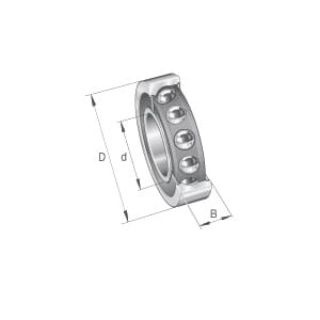

FAG Angular Contact Ball Bearing, Series: 73..-B-2RS, 20 mm Bore, 52 mm OD, 1 Rows, 15 mm Width, 40 deg Contact Angle, Double Seal Closure, 20400 N Dynamic/11100 N Static/750 N Fatigue Load, Polyamide Cage, 8600 rpm Maximum, 120 deg C
