7305WN TKN

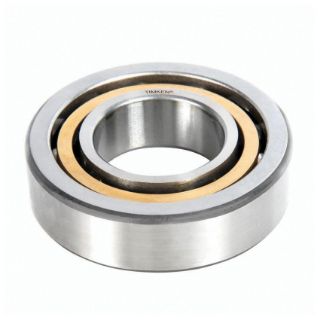

Picture of 7305WN TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
7305WN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$161.90 / EA

Description

Brand Name

Fafnir®

Type

Medium Duty

Description

Timken® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex mounting in sets for maximum performance. Double-row conrad bearings can accommodate thrust in both directions.
Timken® Fafnir®, 7305WN, Angular Contact Ball Bearing, Medium Duty, Series: 7300, 25 mm Bore, 62 mm OD, 1 Rows, 17 mm Width, 40 deg Contact Angle, Open Closure, 5490 lb Dynamic/3000 lb Static Load, Steel Bearing, Pressed Brass Cage, 8070 rpm Grease/9220 rpm Oil Maximum, -50 to 120 deg C, Uncoated

Application

Agriculture, Chemical, General Industry and Utilities

Features

  • Specific geometry of angular contact bearing raceways and shoulders creates ball contact angles that support higher axial loads
  • Dimensionally interchangeable with the radial 300 series
  • 7000WN product family includes a refined bore diameter
  • The 7300WN series can sustain heavier thrust and combined loads than the 7200WN series
  • A single bearing is suggested for applications in which the thrust load is in one direction or in the case of combined loads, the thrust load is high in relation to the radial load
  • A duplex pair is suggested for applications where thrust is present in both directions or where axial displacement of the shaft must be restricted
  • For exceptionally high thrust loads in one direction, a tandem pair can be used, opposed by a third bearing
  • Size 7303W has a 20 deg contact angle and a steel cage
  • Sizes 7304WN through 7318WN have a 40 deg contact angle and a one-piece, ball-piloted, pressed-brass cage
  • Larger sizes 7319WN through 7330WN have a 40 deg contact angle and a one-piece, outer-ring piloted high-strength machined bronze cage
  • Sizes 7306WN to 7318WN also available with a one-piece, high-strength, machined bronze retainer

Specifications

Bearing Material:Steel
Bore Diameter:25 mm
Cage Material:Pressed Brass
Closure Type:Open
Contact Angle:40 deg
Country of Origin:US
Finish:Uncoated
Load Capacity:5490 lb Dynamic/3000 lb Static
Maximum Speed:8070 rpm Grease/9220 rpm Oil
Number of Rows:1
Outside Diameter:62 mm
Series:7300
Temperature Rating:-50 to 120 deg C
Width:17 mm

Products Specifications

Bore Size
25 mm
Brand Name
Timken
