7306-B-XL-2RS-TVP FAG

Picture of 7306-B-XL-2RS-TVP FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
7306-B-XL-2RS-TVP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$284.26 / EA

Description

Brand Name

FAG

Description

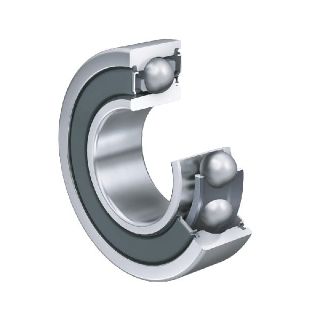

Single-row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.
FAG Angular Contact Ball Bearing, Series: 73-B-2RS, 30 mm Bore, 72 mm OD, 1 Rows, 19 mm Width, 40 deg Contact Angle, Double Seal Closure, 35500 N Load, Polyamide Cage, 6000 rpm Maximum

Features

  • Single row angular contact ball bearings are particularly suitable where bearing arrangements must support combined loads
  • Moderate to high axial loads are present on one side
  • The bearing arrangement must be axially clearance-free or preloaded
  • High speeds are required under higher radial and axial loads
  • X-life design
  • Standard axial contact lip seal
  • Standard solid cage made from glass fiber reinforced polyamide PA66
  • 35500 N dynamic/22100 N static

Specifications

Bore Diameter:30 mm
Cage Material:Polyamide
Closure Type:Double Seal
Contact Angle:40 deg
Country of Origin:DE
Load Capacity:35500 N
Maximum Speed:6000 rpm
Number of Rows:1
Outside Diameter:72 mm
Series:73-B-2RS
Width:19 mm

Products Specifications

Bore Size
30 mm
Brand Name
FAG
