Home / 7307 RAC

7307 RAC

Product Details

Manufacturer:
Manufacturer part number:
7307
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

RACO®

Description

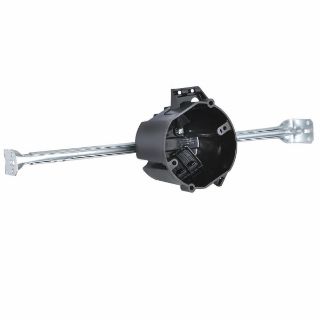

RACO® Ceiling Fan Box, Pry-In Cable Entry Size, 3-1/2 in Dia, Round, Bar Hanger/Ceiling Mount, 18 cu-in, Polycarbonate, Black, 2-5/8 in D

Application

Used in branch circuit wiring to splice wires, provide excellent protection for wiring system or devices, electrical and NMSC applications

Standards

ARRA Compliant | Buy American Act Compliant | UL File No. E195963

Features

  • Lightweight and easy-to-install non-metallic box, self-gripping wire entry clamps
  • Heavy duty polycarbonate bar adjusts from 14-3/4 to 22-1/2 in, 4 cable clamps
  • RACO® non-metallic cable boxes provide the installer with a cost alternative that is lightweight and easy-to install
  • Self-clamping wire entry clamps
  • Round fixture boxes offer an optional front mounted grounding screw
  • Bar hanger adjustable from 14-3/4 in to 22-1/2 in
  • When mounted, box is flush with ceiling surface
  • For spanning from joist to joist
  • Polycarbonate/steel bar
  • Bar adjusts from 14-3/4 to 22-1/2 in

Specifications

Cable Entry Size:Pry-In
Capacity:18 cu-in
Color:Black
Country of Origin:US
Diameter:3-1/2 in
Dimensions:2-5/8 in D
Material:Polycarbonate
Mounting Type:Bar Hanger/Ceiling
Shape:Round
