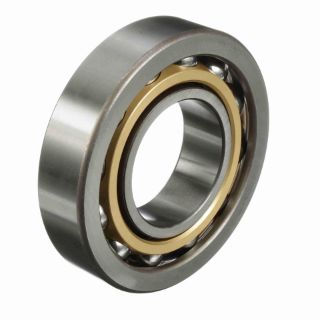

7314 BM RLW

Single row angular contact ball bearings are especially designed to carry combination radial and single direction thrust loads. These bearings are frequently mounted in duplex pairs with the contact angles opposed. This allows them to carry thrust loads from opposing directions. Angular contact bearings can be mounted in a variety of ways like face to face and tandem. The maximum permissible speed is somewhat lower than that of deep groove ball bearings. A slight angular deflection is still possible with the single bearing. However, if bearings are mounted in pairs, rigidity greatly increases together with the ability to prevent misalignment.

Rollway® Angular Contact Ball Bearing, Round Straight Bore Unmounted, Series: 7300B, 70 mm Bore Dia, 150 mm Outside Dia, 1 Row, 35 mm W, 40 deg Contact, Open Closure, 114 kN Dynamic/86 kN Static, Steel Bearing, Machined Bronze Cage, 3800 rpm Grease/5000 rpm Oil Maximum, 150 deg C
