7403-4 BRA

Name: 7403-4 BRA
Brand: Brady
SKU: 7403-4 BRA
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Brady

Manufacturer part number:

7403-4

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brady®

Type

4 Style Permanent Acrylic

Description

Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place. Banding each end of a pipe marker with directional flow arrow tape.

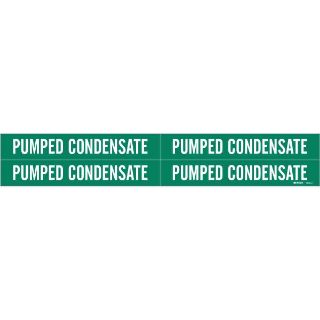

Brady® Pipe Marker, 4 Style Permanent Acrylic, Legend: PUMPED CONDENSATE, White on Green Legend/Background, Fits Pipe Dia: 3/4 to 2-3/8 in, 1-1/8 in Height, 7 in Width, B-946 Vinyl, Self-Adhesive Mounting, 4 Markers per Card

Application

Pipe and Valve Marking and Indoor/Outdoor Applications

Standards

ANSI A13.1-2007 | ASME Specified

Features

B-946 indoor/outdoor marking film is a high gloss, durable, flexible, pressure sensitive adhesive product
B-946 is printed with weather-resistant inks and is particularly suited for use in outdoor applications where weatherability is a key consideration
8 to 10 years average outdoor durability
Abrasion and chemical-resistant
Legend withstands up to 350 cycles
English language
3/4 in H letter
60 deg 50 gardner units gloss
Marker ends should be banded with Brady® directional flow arrow tape to indicate pipe content flow direction
Features coated backing material that makes handling and installation easy
Markers meet the requirements of the ASME (ANSI) A13.1 standard for the identification of piping system contents when used with directional flow arrow tape
Die cut on cards

Specifications

Country of Origin:	US
Fits Pipe Diameter:	3/4 to 2-3/8 in
Height:	1-1/8 in
Legend:	PUMPED CONDENSATE
Legend/Background Color:	White on Green
Markers per Card:	4
Material:	B-946 Vinyl
Mounting Type:	Self-Adhesive
Width:	7 in
