74120-7M3 LEV

Name: 74120-7M3 LEV
Brand: Leviton Manufacturing
SKU: 74120-7M3 LEV
Availability: OutOfStock

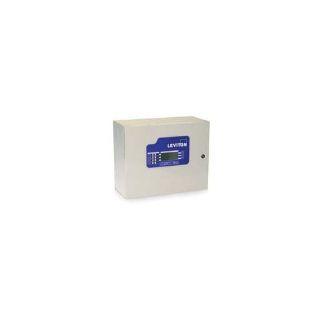

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

74120-7M3

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Type 2

Description

Leviton® 74000/75000 series panel mounted surge protective devices provide seven-mode protection in 120/208 VAC and 277/480 VAC WYE-configured, 3-phase systems. These Type 2 devices are designed for installation at the service entrance, at branch panels or as dedicated transient surge protection for critical equipment. Both series feature individually fused metal oxide varistor arrays, the 74000 series uses 40 mm-diameter MOV while the 75000 series uses 53 mm-diameter MOV.

Leviton® Surge Panel, Type 2, Series: 74000, 120/208 VAC Electrical Rating, 50/60 Hz Frequency, 10 kA Short Circuit, 200 kA Peak Surge Current, 10 kA Nominal Discharge, Modes of Protection: L-L/L-N/L-G/N-G, LED/Noise Filtering/Surge Counter Indicator, 3 ph, Environmental Conditions: -10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability, NEMA 12 Enclosure, Panel Mounting, Lead Wire Terminal, Powder Coated Steel, 15.8 in H x 19.71 in W x 8.33 in D Dimensions

Application

Commercial Applications

Standards

ANSI | IEEE C-62.41/C-62.45 | cULus 1449 | PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

Protection for up to 200000 A (74000 series) or up to 320000 A (75000 series) surge current per mode
7-mode protection (each phase to neutral, each phase to ground and neutral to ground) for WYE configured, 3-phase AC systems
Real-time diagnostics monitor power and suppression status for each phase and provide both LED indicators and audible alarm
User replaceable plug-in modules eliminate the need to replace the entire surge panel following a surge event
Surge event history including surge magnitude, time and date for each surge event can be viewed on an easy-to read display
Equipped with dry contacts for remote monitoring
Parallel hardwire using terminal block, accepts up to 6 AWG connection
Surge panel with replaceable surge modules

Specifications

Country of Origin:	MX
Dimensions:	15.8 in H x 19.71 in W x 8.33 in D
Electrical Ratings:	120/208 VAC
Enclosure Type:	NEMA 12
Environmental Conditions:	-10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability
Frequency Rating:	50/60 Hz
Indicator Type:	LED/Noise Filtering/Surge Counter
Material:	Powder Coated Steel
Modes of Protection:	L-L/L-N/L-G/N-G
Mounting Type:	Panel
Nominal Discharge Current:	10 kA
Peak Surge Current:	200 kA
Phase:	3
Series:	74000
Short Circuit Current Rating:	10 kA
Terminal Type:	Lead Wire
