Home / 7413-GC LEV

7413-GC LEV

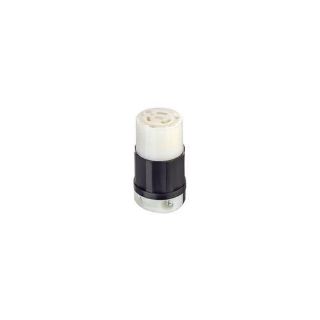

Picture of 7413-GC LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7413-GC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$86.12 / EA

Description

Brand Name

Leviton®

Type

Cable Mount

Description

Leviton's Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Leviton® Locking Connector, Grounding, 250 VAC/VDC, 20/10 A, 3 Pole, 4 Wires, Industrial Grade, 0.595 to 0.895 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 3.78 in H x 2.22 in W Dimensions

Application

Industrial Applications

Standards

NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Features

  • Super tough nylon body resists damage from severe impact, abrasion and chemicals
  • Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
  • Cord clamp does not have to be disassembled from body for wiring - accepts wire mesh connection strain reliefs
  • One-piece, rivetless 0.035 in thickness brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
  • Power Indication™ 15A locking plugs and connectors equipped with green neon bulb rated at 30,000 hours (24/7) for 3.5 years
  • Dielectric voltage withstands 2000 V per UL498
  • Certified for current interrupting at full rated current
  • Max 30 deg C after 250 cycles OL at 200% rated current
  • Impact modified nylon
  • Thermoplastic back cover
  • Nylon wire module, cord clamp and clamp insert
  • Solid brass blades/contacts
  • Brass screw terminal
  • Steel, zinc plated assembly screws
  • 18 to 10 AWG terminal accommodation
  • 14 to 10 AWG wire gauge

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.595 to 0.895 in
Country of Origin:MX
Dimensions:2-7/32 in Dia x 3-25/32 in H
Grade:Industrial
Material:Nylon
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:120/208 VAC
