7416PW BR SU TKN

Name: 7416PW BR SU TKN
Brand: Timken
SKU: 7416PW BR SU TKN
Price: 2,595.59 USD
Availability: OutOfStock

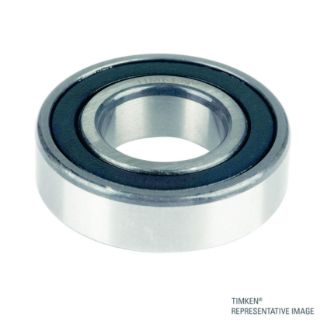

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

7416PWBRSU

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,595.59 / EA

Description

Brand Name

Fafnir®

Type

Heavy Duty Straight Bore

Description

Timken® Angular Contact Ball Bearings are designed to handle high speeds with both radial and axial loads with reliable performance in pump, compressor, electric motor and many other industrial applications. Our products offering includes a range of single-row universally matched, single-row standard and double-row products with different cage types, contact angles and tolerances.

Timken® Fafnir®, 7416PWBRSU, Angular Contact Ball Bearing, Heavy Duty Straight Bore, Series: 7400, 80 mm Bore, 200 mm OD, 1 Rows, 48 mm Width, 35 deg Contact Angle, Single Contact Seal Closure, 45600 lb Dynamic/34300 lb Static Load, Steel Bearing, Machined Bronze Cage, 36285.78 rpm Grease/54428.68 rpm Oil Maximum, -50 to 120 deg C

Application

Aircraft, Construction, Agricultural, Machine Tool and General Industry Applications

Standards

Precision Class ABEC 1

Features

Enhanced raceway finish
Quiet operation
Dimensionally interchangeable

Specifications

Bearing Material:	Steel
Bore Diameter:	80 mm
Cage Material:	Machined Bronze
Closure Type:	Single Contact Seal
Contact Angle:	35 deg
Load Capacity:	45600 lb Dynamic/34300 lb Static
Maximum Speed:	36285.78 rpm Grease/54428.68 rpm Oil
Number of Rows:	1
Outside Diameter:	200 mm
Series:	7400
Temperature Rating:	-50 to 120 deg C
Width:	48 mm
