74277-7M3 LEV

Name: 74277-7M3 LEV
Brand: Leviton Manufacturing
SKU: 74277-7M3 LEV
Availability: OutOfStock

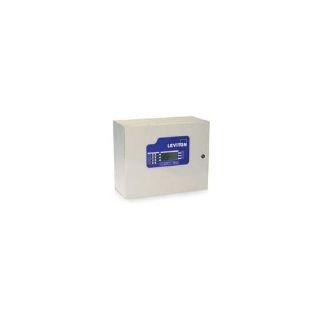

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

74277-7M3

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Type 2

Description

Leviton 74000/75000 series panel mounted surge protective devices provide seven-mode protection in 120/208 VAC and 277/480 VAC WYE-configured, 3-phase systems. These Type 2 devices are designed for installation at the service entrance, at branch panels, or as dedicated transient surge protection for critical equipment. Both series feature individually fused metal oxide varistor arrays; the 74000 series uses 40mm-diameter MOV while the 75000 series uses 53mm-diameter MOV.

Leviton® Surge Protective Panel, Type 2, Series: 74000, 277/480 VAC Electrical Rating, 50/60 Hz Frequency, 10 kA Short Circuit, 200 kA Peak Surge Current, 10 kA Nominal Discharge, Modes of Protection: L-L/L-N/L-G/N-G, LED/Noise Filtering/Surge Counter Indicator, 3 ph, Environmental Conditions: -10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability, NEMA 12 Enclosure, Panel Mounting, Lead Wire Terminal, Powder Coated Steel, 15.8 in H x 19.71 in W x 8.33 in D Dimensions

Application

Commercial Applications

Standards

ANSI | IEEE C-62.41/C-62.45 | cULus 1449

Features

Protection for up to 200000 A (74000 Series) or up to 320000 A (75000 Series) surge current per mode
Seven-Mode Protection each phase to neutral, each phase to ground and neutral to ground for WYE-configured, 3-phase AC systems
Real-time diagnostics monitor power and suppression status for each phase and provide both LED indicators and audible alarm
User replaceable plug-in modules eliminate the need to replace the entire surge panel following a surge event
Surge event history including surge magnitude, time, and date for each surge event can be viewed on an easy-to-read display data can also be downloaded for storage
Equipped with dry contacts for remote monitoring
Parallel hardwire using terminal block, accepts up to #6 AWG connection
Surge panel with replaceable surge modules
With enhanced surge counter
40 mm MOV surge technology
3 wye phase
6 AWG Wire
Powder coated steel
Type 2

Specifications

Country of Origin:	MX
Dimensions:	15.8 in H x 19.71 in W x 8.33 in D
Electrical Ratings:	277/480 VAC
Enclosure Type:	NEMA 12
Environmental Conditions:	-10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability
Frequency Rating:	50/60 Hz
Indicator Type:	LED/Noise Filtering/Surge Counter
Material:	Powder Coated Steel
Modes of Protection:	L-L/L-N/L-G/N-G
Mounting Type:	Panel
Nominal Discharge Current:	10 kA
Peak Surge Current:	200 kA
Phase:	3
Series:	74000
Short Circuit Current Rating:	10 kA
Terminal Type:	Lead Wire
