74550A-902B6 TKN

Name: 74550A-902B6 TKN
Brand: Timken
SKU: 74550A-902B6 TKN
Price: 4,539.11 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

74550A-902B6

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$4,539.11 / EA

Description

Brand Name

Timken®

Description

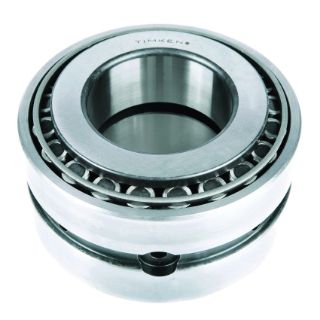

Timken®, 74550A-902B6, Tapered Roller Bearing Assembly, 5-1/2 in Bore, 8-1/2 in OD, 2 Rows, 4-3/16 in Width, 150000 lb Dynamic/276000 lb Static Load, Steel Bearing, -65 to 250 deg F

Application

Heavy Duty Gear Drives and Various Industrial Configurations

Standards

ABMA Class 2 | ANSI Standard

Features

Available in single, double and multi-row configurations, as well as proprietary sizes
Designed in collaboration with OE engineers to design, engineer and test bearings for premium performance in many applications
Power dense designs allow for heavier loads and can help extend bearing life
Optimized internal geometry lower torque and operating temperatures to extend lubrication system life
Can be designed to withstand high-corrosive, high-temperature and vacuum or low-lubrication environments with proprietary enhancements
Bearing bore, OD, width or radius have been customized to be different from the basic part number, and are not interchangeable

Includes

(2) 74550A-20024 Cone, (1) 74851CD-20024 3.188 in W Double Cup and (1) X1S74550-20000 Spacer Cone

Specifications

Bearing Material:	Steel
Bore Diameter:	5-1/2 in
Cage Material:	Steel
Load Capacity:	150000 lb Dynamic/276000 lb Static
Number of Rows:	2
Outside Diameter:	8-1/2 in
Temperature Rating:	-65 to 250 deg F
Width:	4-3/16 in
