747DAT15 APN

Name: 747DAT15 APN
Brand: Appleton
SKU: 747DAT15 APN
Price: 25.70 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

747DAT15

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$25.70 / EA

Description

Brand Name

Appleton®

Type

Recessed Head

Description

This comprehensive range of stopper plugs is designed to close any unused entries in electrical equipment. Care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating.

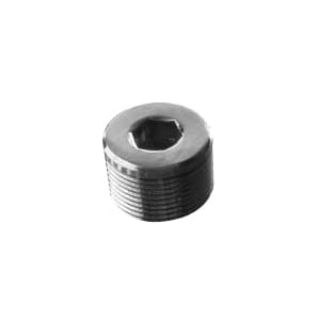

Appleton® Cable Gland Stopper Plug, Recessed Head, Series: 747, 1/2 in NPT Thread, -76 to 212 deg F Operating, Brass, Nickel Plated Finish

Application

Uses to flameproof electrical equipment in hazardous areas

Standards

UL 886 (1203)/E60079-0/E60079-1/E60079-7 | C22.2 No. 30 | CAN/CSA E60079-0/E60079-1/E60079-7 | cCSAus 113642

Features

Catering to both Industrial and Hazardous Area applications the range covers a number of different metallic and non-metallic
Compensating Displacement Seal (CDS) system allows for use with Restricted Breathing equipment
Internal Allen key design is considered tamper proof, once the equipment has been de-energized and the terminal chamber cover removed it can be removed from the inside

Specifications

Country of Origin:	GB
Finish:	Nickel Plated
Material:	Brass
Operating Temperature:	-76 to 212 deg F
Series:	747
Thread Size:	1/2 in NPT
