747DAT35 APN

Name: 747DAT35 APN
Brand: Appleton
SKU: 747DAT35 APN
Price: 42.12 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

747DAT35

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$42.12 / EA

Description

Brand Name

Appleton®

Type

Recessed Head Threaded

Description

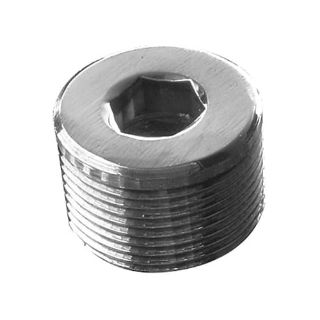

Appleton® Cable Gland Stopper Plug, Recessed Head Threaded, Series: 747, 1 in NPT Thread, -76 to 392 deg F Operating, Brass, Nickel Plated

Application

For flameproof electrical equipment in hazardous areas

Standards

UL 886 | CAN/CSA C22.2 | C22.2 No. 30 | EN 60079-0 | IEC 60079-0 | EN 60079-1 | IEC 60079-1 | EN 60079-7 | IEC 60079-7 | EN 61241-1 | IEC 61241-1 | cCSAus 113642 | NEC/CEC Class I, Groups, A, B, C, D, Class II, Group E, F, G, Class III | CE DC07001 | ATEX 13ATEX1265X | IECEx SIR 13.0094X | EN 60529 | IEC 60529 | Lloyds Certified | DNV Listed | ABS Approved | TUV 12.1333X

Features

In general, care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment
Catering to both industrial and hazardous area applications, the range covers a number of different metallic and non-metallic (e.g. nylon) forms
Compensating displacement seal (CDS) system allows for use with restricted breathing equipment
Internal Allen key design is considered tamperproof
Once the equipment has been de-energized and the terminal chamber cover removed it can be removed from the inside

Specifications

Country of Origin:	GB
Finish:	Nickel Plated
Material:	Brass
Operating Temperature:	-76 to 392 deg F
Series:	747
Thread Size:	1 in NPT
