749.10.06 REX

Name: 749.10.06 REX
Brand: Rexnord
SKU: 749.10.06 REX
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

749.10.06

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rexnord®

Type

Side-Flexing

Description

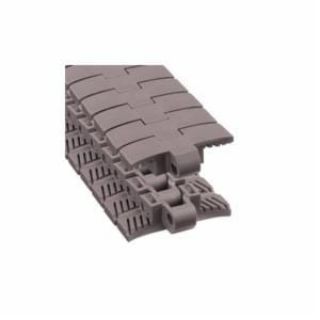

1060 series chains are 1 in pitch and have a top plate thickness of 0.34 in. Solid top chains have a smooth top and are versatile enough to convey everything from individual units as well as packaged and cased goods. Features Magnetflex® curve retention. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 7700 series sprockets for true chain/sprocket interaction.

Rexnord® TableTop® Flat Top Conveyor Chain, Side-Flexing, Series: 1060, 1 in Pitch, 0.34 in Pin Diameter, 1.66 in Pin Length, 3.31 in Plate Width, 0.34 in Plate Thickness, 19.69 in Minimum Side-Flex Radius, 5.12 in Minimum Back-Flex Radius, 425 lb Tensile Strength, 10 ft Overall Length, Acetal, Green

Application

Food Processing, Beverage, Unit Handling and Industrial Applications

Standards

FDA 21 CFR 177

Features

Engineered for a wide range of conveyor applications for many industries
Reduce container tipping and jams at transfer points
Side-flexing options for ease of installation, reduced floor space
TableTop® chain for high-strength and high-speed applications
Internally lubricated extra low-friction acetal

Specifications

Finish:	Green
Material:	Acetal
Minimum Back-Flex Radius:	5.12 in
Minimum Side-Flex Radius:	19.69 in
Overall Length:	10 ft
Pin Diameter:	0.34 in
Pin Length:	1.66 in
Pitch:	1 in
Plate Thickness:	0.34 in
Plate Width:	3.31 in
Series:	1060
Tensile Strength:	425 lb
