7510AST ARL

Name: 7510AST ARL
Brand: Arlington
SKU: 7510AST ARL
Price: 4.14 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Arlington

Manufacturer part number:

7510AST

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$4.14 / EA

Description

Brand Name

Arlington

Alternate Supplier #

Grainger - 6XXA4

Description

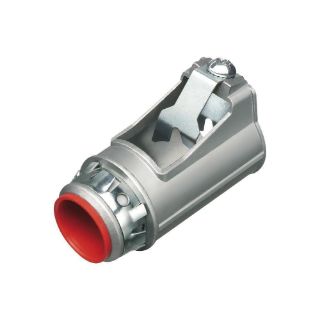

Arlington SNAP-TITE® Snap2IT® Cable Connector, 3/4 in Trade, 3/4 in Knockout, Cable Openings: 0.895 to 1.11 in, Aluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS Cable, Push-On Connection, Die Cast Zinc, Silver, 2.496 in H x 1.709 in W Dimensions

Application

For steel and aluminum flexible conduit

Standards

CSA LR84319 | UL File No. E7819

Features

Installs as fast and costs the same as our other Snap2IT® fitting, but cable insertion is even easier!
Simply snap the cable into the fitting and snap it into the box, no tools needed! the screw only holds the clip-in place
Widest cable ranges, accommodates cable from 14/2 to 10/4 AWG
Super secure the angled, (2) prong clip locks down on MC cable so there no chance of pullout
Cable is removable, simply loosen the screw-on top
Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
Concrete tight when taped
Snaps into knockout with external spring steel clip

Specifications

Cable Openings:	0.895 to 1.11 in
Cable Type:	Aluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS
Color:	Silver
Connection Type:	Push-On
Country of Origin:	US
Dimensions:	2.496 in H x 1.709 in W
Knockout Size:	3/4 in
Material:	Die Cast Zinc
Trade Size:	3/4 in
