Actual Product May Vary From Image

.7518OT3E56-S WEG

Name: .7518OT3E56-S WEG
Brand: WEG
SKU: .7518OT3E56-S WEG
Price: 330.00 USD
Availability: OutOfStock

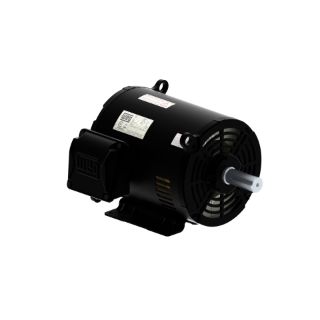

WEG .7518OT3E56-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 0.75 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 56 Frame, 1760 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: .7518OT3E56-S

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$330.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112708993
Motion Industries - 06583687

Description

The W01 premium efficiency motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 rolled steel platform has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 0.75 hp, 208/230/460 VAC, 2.54 to 2.30/1.15 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 56 Frame, 5/8 in Dia x 1-7/8 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 2.21 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 11.102 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Aluminum endshields
Cast iron flanges for improved strength
Internal bolts, giving a clean surface to the motor
Double shielded ball bearings
Robust design
IP55 rating

Specifications

Amperage Rating:	2.54 to 2.30/1.15 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	11.102 in L
Enclosure Type:	Open Drip-Proof
Frame:	56
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Footed
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	5/8 in Dia x 1-7/8 in L
Speed:	1760 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	2.21 ft-lb
Voltage Rating:	208/230/460 VAC
