752.89.20 REX

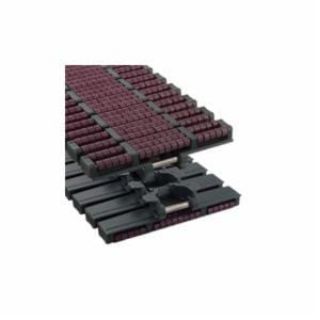

882 series chains are 1-1/2 in pitch and 882 LBP chains have a top of roller to plate bottom dimension of 0.76 in. Low Backline Pressure (LBP) chains are designed for handling cases, tray packs and almost anything else in a box. These unique chains offer rollers to reduce backline pressure of accumulating cases. Its non-marring rollers help to protect the graphics on cases and boxes during accumulation. Chain is available in different chain materials for different friction, wear and speed characteristics. Chain is designed to operate on standard 882 series sprockets for true chain/sprocket interaction.

Rexnord® TableTop® Flat Top Conveyor Chain, Side-Flexing, Series: 882, 1-1/2 in Pitch, 0.32 in Pin Diameter, 2-1/4 in Pin Length, 12 in Plate Width, 26.77 in Minimum Side-Flex Radius, 9.06 in Minimum Back-Flex Radius, 625 lb Tensile Strength, 5 ft Overall Length, Acetal, Gray
