7556-G LEV

Name: 7556-G LEV
Brand: Leviton Manufacturing
SKU: 7556-G LEV
Availability: OutOfStock

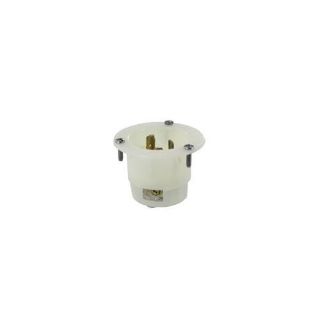

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

7556-G

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Flanged

Description

Leviton industry leading locking devices, such as our black and white line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Leviton® Locking Inlet, Flanged, 125/250 VAC, 15/10 A, 3 Pole, 3 Wires, NEMA WD-6 NEMA Rating, -40 to 60 deg C, Brass-Hot/Green-Ground/Silver-Neutral Wire Terminal, Nylon, White, 1-7/8 in Dia x 1-11/32 in L Dimensions

Application

Commercial Applications

Standards

Features

#18 to 10 AWG terminal size
Maximum 30 deg C after 250 cycles OL at 200 percent rated current temperature rise
Screw type brass #10-32
Solid brass line contacts
Dielectric strength: 2000 (minimum)
Connection type: back wired
#18 to 10 AWG wire size
Flange mounting
Grounding wire
Ratings and NEMA I.D. permanently marked on device
Current limiting: full-rated current
Dielectric: 2000 V
Lifetime warranty

Specifications

Amperage Rating:	15/10 A
Color:	White
Country of Origin:	US
Dimensions:	1-7/8 in Dia x 1-11/32 in L
Material:	Nylon
NEMA Rating:	NEMA WD-6
Number of Poles:	3
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Brass-Hot/Green-Ground/Silver-Neutral Wire
Voltage Rating:	125/250 VAC
