7557 LEV

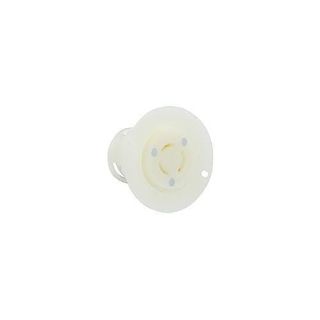

Picture of 7557 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7557
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$50.82 / EA

Description

Brand Name

Leviton®

Type

Non-Grounding Non-NEMA Receptacle

Alternate Supplier #

Grainger - 25MF56

Description

Leviton®'s industry leading locking devices, such as our black and white line of industrial grade plugs and connectors and our V-0-Max® line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton® Flanged Outlet Locking Receptacle, 125/250 VAC, 15/10 A, 3 Pole, 3 Wires, Industrial Grade, -40 to 60 deg C, Rear Terminal, Nylon, White, 33 in Dia Dimensions

Application

Commercial Applications

Standards

ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No.42 File No. LR406 | Federal Specification WC596 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Features

  • 18 to 10 AWG terminal accommodation, grounding
  • 2000 VAC minimum dielectric strength
  • Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
  • Nylon face material, solid brass line contacts
  • #10-32 brass terminal screws
  • #8-32 brass grounding screws
  • Thermoplastic nylon strap
  • Brass-hot, green ground, white-neutral terminal ID
  • Ratings are permanently marked on device product ID
  • Rugged nylon flange fits flush and won't crack in high abuse applications
  • Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
  • Wire clamps provide positive crimp lock without cutting wire strands
  • 50 A devices designed in a steel flanged cup for high abuse applications
  • Non-NEMA rating

Specifications

Amperage Rating:10/15 A
Color:White
Country of Origin:MX
Dimensions:33 in Dia
Grade:Industrial
Material:Nylon
Number of Poles:3
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back Wire
Voltage Rating:125/250 VAC
