757DRM44 APN

Picture of 757DRM44 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
757DRM44
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Hexagon Head

Description

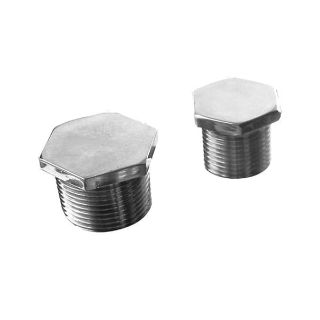

Appleton® Cable Gland Stopper Plug, Hexagon Head, Series: 757, M32 Thread, -76 to 392 deg F Operating, 316L Stainless Steel

Application

Ideal for use on flameproof and increased safety electrical equipment in hazardous areas

Standards

BS 6121 | cCSAus 113642 | CSA C22.2 #30 | CAN/CSA E60079-0/E60079-1/E60079-7 | IEC 60079-0/60079-1/60079-7/60079-15/61241-0/61241-1 | NF E 03 601 | NEC/CEC Class I Group A B C D/Class II Group E F G/Class III Zone 1 AEx de II | NEMA 4X | IP66/IP68 | UL 886/E60079-0/E60079-1/E60079-7 | Triple Certification Ex d/Ex e/Ex nR

Features

  • Blanking plugs are designed for use from the outside of the enclosure to permanently or temporarily close any unused entries
  • In general, care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating
  • Catering to hazardous area applications, the range of products covers a number of different design types which are supplied in both metal and plastic (exe only)
  • Hexagon head allows for the installation or remove of the plug with either an open ended or ring type spanner or wrench
  • Increased safety and flameproof
  • Used on cable gland

Specifications

Country of Origin:GB
Material:316L Stainless Steel
Operating Temperature:-76 to 392 deg F
Series:757
Thread Size:M32
