757DT55 APN

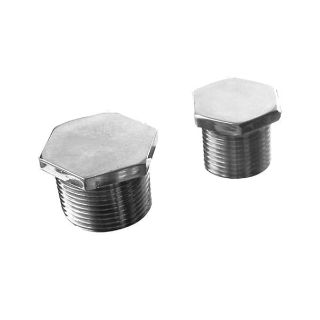

Appleton® 757DT55 Hexagon Head Cable Gland Stopper Plug, 1-1/2 in NPT Thread, -76 to 392 deg F Operating, Brass, Nickel Plated
Manufacturer: Appleton
Manufacturer part number: 757DT55
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$108.46

Product Details

Brand Name

Appleton®

Type

Hexagon Head

Description

Appleton® Cable Gland Stopper Plug, Hexagon Head, Series: 757, 1-1/2 in NPT Thread, -76 to 392 deg F Operating, Brass, Nickel Plated

Application

Ideal for use on flameproof and increased safety electrical equipment in hazardous areas

Standards

BS 6121 | cCSAus 113642CSA C22.2 30 | CAN/CSA E60079-0/E60079-1/E60079-7 | IEC 60079-0/60079-1/60079-7/60079-15/61241-0/61241-1 | NF E 03 601 | NEC/CEC Class I Group A B C D/Class II Group E F G/Class III Zone 1 AEx de II | NEMA 4X | IP66/IP68 | UL 886/E60079-0/E60079-1/E60079-7 | Triple Certification Ex d/Ex e/Ex nR

Features

  • Blanking plugs are designed for use from the outside of the enclosure to permanently or temporarily close any unused entries
  • In general, care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating
  • Catering to hazardous area applications, the range of products covers a number of different design types which are supplied in both metal and plastic (exe only)
  • Hexagon head allows for the installation or remove of the plug with either an open ended or ring type spanner or wrench
  • Increased safety and flameproof
  • Used on cable gland

Specifications

Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Operating Temperature:-76 to 392 deg F
Series:757
Thread Size:1-1/2 in NPT
