7594NP HWD

Name: 7594NP HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 7594NP HWD
Price: 27.03 USD
Availability: OutOfStock

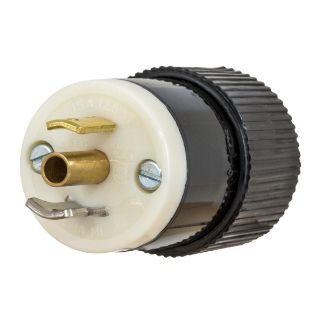

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

7594NP

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$27.03 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Grounding Male Standard

Description

Wiring Device-Kellems Midget Locking Plug, 1-Phase Grounding Male Standard, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA ML-2P NEMA Rating, Industrial Grade, 0.3 to 0.95 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Composite, White, 1.25 in L x 1.25 in W x 1.6 in H Dimensions

Application

Extra Heavy Duty Industrial and Indoor Dry Environment Applications

Standards

CSA C22.2 No. 49 File No. LR16215 Guide 20T2 Certified | NEMA WD1/WD6 | RoHS Compliant | UL 498

Features

It has clear polycarbonate terminal cover for convenience
Nickel plated brass plug blades and zinc plated terminal clamp nut/assembly screws
Plug can withstand dielectric voltage of 3500 VAC and maximum temperature rise of 30 deg C at full rated current after 50 cycles of overload at 150% rated current for either AC/DC
It has X, Y, Z brass hot, green ground and silver neutral terminal ID with terminal accommodation of 18 to 8 AWG
It has HB/UL94 flammability rating to withstand hazardous environmental conditions
Chemical resistant, impact resistant
Certified for current interrupting at full rated current
Zinc plated steel terminal clamp and assembly screws, impact modified nylon face/terminal assembly and cord grip assembly, super tough nylon cover housing, brass, neutral blade nickel plated plug blades
#10 bronze terminal screws, ML-2 midget/special configuration, straight body
Withstands 3500 VAC per UL498 dielectric voltage
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
(X, Y Z brass hot) (G, green, grounding) (W, silver, neutral) terminal identification
3-wires 0.3 in to 0.95 in, 4 and 5-wires 0.465 in to 1.115 in cord grip range

Specifications

Amperage Rating:	15 A
Color:	White
Cord Diameter:	0.3 to 0.95 in
Country of Origin:	PR
Dimensions:	1.25 in L x 1.25 in W x 1.6 in H
Grade:	Industrial
Material:	Composite
NEMA Rating:	NEMA ML-2P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
