7599-FW LEV

Name: 7599-FW LEV
Brand: Leviton Manufacturing
SKU: 7599-FW LEV
Availability: OutOfStock

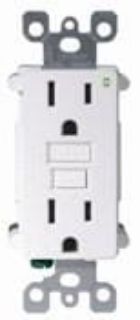

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

7599-FW

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Duplex

Description

Leviton® is the leading manufacturer of ground fault circuit interrupters (GFCIs) in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec Grade and Hospital Grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a patented reset lockout feature that blocks the Reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant, weather-resistant, hospital grade, GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy-install slim versions and time-saving Lev-Lok GFCIs. SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy-efficient, long-life LED ON and OFF.

SmartlockPro® GFCI Receptacle, Duplex, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, White, 4.21 in H x 1.48 in D Dimensions

Application

Residential and Commercial Applications

Standards

Features

Automatically test the GFCI every time the RESET button is pushed in the GFCI will not reset if the GFCI circuit is not functioning properly
By blocking reset of the GFCI if protection has been compromised, SmartlockPro reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
A line load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices, green LED indicator on the GFCI face also illuminates to alert the installer to the line load wiring reversal
The trip latch mechanism in SmartLockPro® GFCIs is a 1-piece T-design for efficient operation
There are 4 sets of contacts for load terminals and face SmartLockPro® GFCIs use a Patented bifurcated bridge contact for efficient operation
Trip threshold meets or exceeds UL requirements for tripping time
Improved immunity to high frequency noise reduces nuisance tripping
Advanced electronics design provides superior resistance to electrical surges and over-voltages
Expanded wiring options with nine Back-wire holes and two for each line and load connection plus one for ground with an internal clamp
Silver alloy contact material
Compatible with all Decora® devices and wallplates available in select Decora® colors
Withstands 2000 VAC per UL498
10 kA short circuit current rating
Max 30 C after 100 cycles OL at 150% rated current temperature rise
Rated V-2 per UL94 flammability
Thermoplastic nylon face, brass double wipe 0.031 THK line contacts, plated steel terminal screws, plated steel grounding screws, zinc plated steel yoke, zinc plated steel clamps nut
Brass-hot, green-ground, silver-neutral terminal ID
14 to 10 AWG terminal accommodation
Button match face color
Class A, 5 mA +/- 1 mA trip level

Includes

Steel Strap

Specifications

Amperage Rating:	15 A
Color:	White
Country of Origin:	MX
Dimensions:	4.21 in H x 1.48 in D
Grade:	Hospital
Horsepower:	1 hp
Material:	Polycarbonate
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-35 to 66 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
