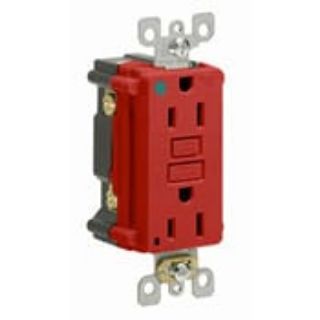

7599-HFR LEV

Product Details

Manufacturer part number:
7599-HFR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Ground Fault Circuit Interrupter Duplex Outlet

Description

Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Available in Extra Heavy Duty Hospital and Commercial Spec Grade, they are ideal for a wide range of GFCI applications. Our large selection of GFCIs includes Tamper-Resistant (TR) GFCI devices that meet Section 406.11 of the 2008 code and help protect children from electrical shock. For the highest level of ground fault protection, install 2008 NEC code compliant Weather-Resistant GFCI (WR) receptacles, which meet UL 498 requirements. Built with UV stabilized engineering thermoplastic, the devices have high cold impact resistance and feature stainless steel straps and mounting screws.
Leviton® Straight Blade Receptacle, Ground Fault Circuit Interrupter Duplex Outlet, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, -35 to 66 deg C, Back Wire Terminal, Nylon, Red, 4.21 in H x 1.7 in W x 1.48 in D Dimensions

Application

Commercial Applications

Standards

NOM 057 | CSA C22.2 No. 42 File LR-57811 | UL 498HG File No. E13399 | UL 943 Class A File No. E48380 | ANSI C73 | NEMA WD1 | NEMA WD6

Features

  • Terminal Size: #14 to 12 awg
  • Temperature Rise: Max 30 Degrees C After 50 Cycles OL At 150 Percent Rated Current
  • Clamp Nuts: Galvanized Steel
  • Screw Type: Plated Steel
  • Line Contacts: 0.031 in thick Brass, Douple Wipe
  • Dielectric Strength: 2000 (Minimum)
  • Contact Material: Silver Alloy
  • Wire Size: #14 to 10 awg
  • Mounting Type: Box
  • Grounding: GFCI Ground Fault
  • Product ID: Ratings are permanently marked on device
  • Current Limiting: 10kA
  • Trip Class: 5mA Plus Or Minus 1mA
  • Warranty: 2 Year

Specifications

Amperage Rating:15 A
Color:Red
Country of Origin:MX
Dimensions:4.21 in H x 1.7 in W x 1.48 in D
Horsepower:1 hp
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Back Wire
Voltage Rating:125 VAC
