Home / 7599-HFW LEV

7599-HFW LEV

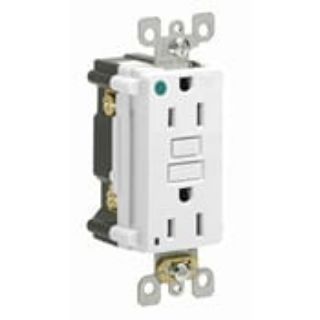

Picture of 7599-HFW LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7599-HFW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Description

Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Available in Extra Heavy Duty Hospital and Commercial Spec Grade, they are ideal for a wide range of GFCI applications. Our large selection of GFCIs includes Tamper-Resistant (TR) GFCI devices that meet Section 406.11 of the 2008 code and help protect children from electrical shock. For the highest level of ground fault protection, install 2008 NEC code compliant Weather-Resistant GFCI (WR) receptacles, which meet UL 498 requirements. Built with UV stabilized engineering thermoplastic, the devices have high cold impact resistance and feature stainless steel straps and mounting screws.
SmartlockPro® GFCI Receptacle, 125 VAC, 15 A, 1 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Hospital Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, White, 4.21 in H x 1.7 in W x 1.48 in D

Standards

NAFTA Compliant | NEMA WD-1/WD-6 | ANSI C-73 | UL943 Class A File E48380 | UL498HG File E13399 | CSA C22.2 No. 42 File LR-57811 | NOM 057

Features

  • GFCI ground fault
  • 10 kA limiting current
  • Max 30 C after 50 cycles OL at 150 percent rated current temperature rise
  • 5 mA plus or minus 1 mA trip level
  • Rated V-2 per UL94
  • Nylon cover, galvanized steel with riveted ground contacts strap, 0.031 THK brass, double-wipe, silver alloy internal switch contacts, plated brass terminal screws, plated steel grounding screws, galvanized steel clamp nuts
  • Brass-hot, green-ground, silver-neutral terminal ID
  • 14 to 12 AWG terminal accommodation
  • Back and side wired with 20 A feed-through

Includes

Steel Strap

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:MX
Dimensions:4.21 in H x 1.7 in W x 1.48 in D
Grade:Commercial/Hospital
Horsepower:1 hp
Material:Polycarbonate
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
