Home / 7599-HGG LEV

7599-HGG LEV

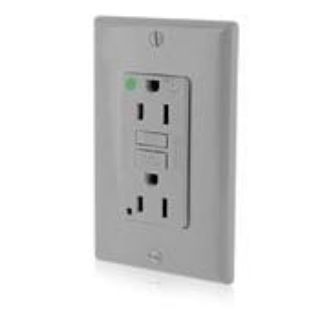

Picture of 7599-HGG LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
7599-HGG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Description

SmartlockPro® GFCI Duplex Receptacle, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Hospital Grade, -35 to 66 deg C, Screw Terminal, Thermoplastic, Gray, 4.21 in H x 1.31 in W x 1.19 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 File No. 42 | CSA File No. LR57811 | NEMA WD-6 | NOM 057 Certified | UL 498 | UL File No. E13399 | UL 94 V-2 Flammability Rated

Features

  • Box mounting
  • UL 94V-2 flammability rated
  • Steel strap
  • Back and Side wire connection

Includes

Nylon Wallplate and Screws

Specifications

Amperage Rating:15 A
Color:Gray
Country of Origin:CN
Dimensions:4.21 in H x 1.31 in W x 1.19 in D
Grade:Hospital
Horsepower:1 hp
Material:Thermoplastic
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
