7599-HGI LEV

Name: 7599-HGI LEV
Brand: Leviton Manufacturing
SKU: 7599-HGI LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

7599-HGI

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Duplex

Description

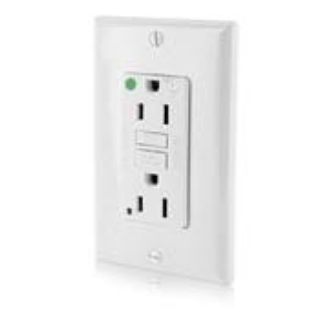

SmartlockPro® GFCI Receptacle, Duplex, 125 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Hospital Grade, -35 to 66 deg C, Screw Terminal, Thermoplastic, Ivory, 4.21 in H x 1.31 in W x 1.19 in D Dimensions

Application

Commercial Applications

Standards

Features

Max 30 C after 50 cycles OL at 150% rated current
Rated V-2 per UL94 flammability
Nylon face, brass 10-32 terminal screws, brass 8-32 grounding screw, zinc plated steel yoke, zinc plated steel clamp nuts
Brass-hot, green-ground, white neutral terminal ID
Diagnostics with indicator light
GFCI ground fault
Buttons match face
Back and side wired
20 A feed-through

Includes

Steel Strap, Nylon Wallplate and Screws

Specifications

Amperage Rating:	15 A
Color:	Ivory
Country of Origin:	CN
Dimensions:	4.21 in H x 1.31 in W x 1.19 in D
Grade:	Hospital
Horsepower:	1-1/2 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-35 to 66 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
