75A23005 APN

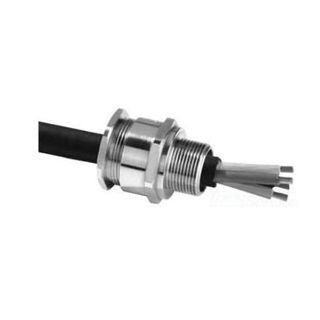

Picture of 75A23005 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75A23005
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$688.16 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® A2 Industrial Cable Gland are brass indoor and outdoor cable glands for use with all types of unarmored and exterior braid armor with protective sheath cable providing mechanical cable retention and an environmental seal on the cable outer sheath.
Appleton® Industrial Cable Gland, Straight, Series: A2, 3 in NPT Thread, 2.41 to 2.68 in Diameter Cable, 0.59 in Thread Length, For Use With: Unarmored and Exterior Braid Armor with Protective Sheath Cable, Brass, Nickel Plated Finish

Standards

CSA 101909/174 | Deluge Protection - To DTS01 91 | CEPEL/INMENRD EX-023 | SAQAS AUSEX764 | CEC Approved

Features

  • Designed and tested to BS 6121: Part 1: 1989, meets and surpasses the requirements of EN 50262:1999
  • Unarmored cable type
  • Sealing technique - displacement seal concept
  • Sealing area(s) - outer sheath

Specifications

Cable Diameter:2.41 to 2.68 in
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:A2
Suitable For Use With:Unarmored and Exterior Braid Armor with Protective Sheath Cable
Thread Length:0.59 in
Thread Size:3 in NPT
