75A2F3004 APN

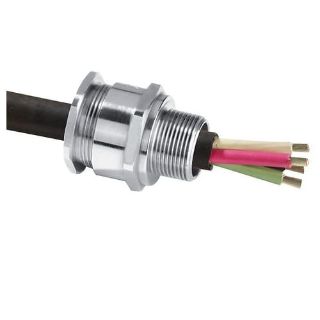

Picture of 75A2F3004 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75A2F3004
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,184.28 / EA

Description

Brand Name

Appleton®

Type

Constructional Feature Explosionproof Flameproof Increased Safety Straight Weatherproof

Description

Appleton® A2F series nickel plated brass cable glands are suitable for unarmored and exterior braid armor with protective sheath cable certified for enclosures with the following protection modes, Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Increased Safety Straight Weatherproof, Series: A2F Series, 75 Trade, Cable Openings: 2.41 to 2.68 in, Exterior Braid Armored/Unarmored Cable, 3 in NPT Connection, 316L Stainless Steel, -60 to 130 deg C, 1.85 in L x 3.64 in W Dimensions

Application

For onshore and offshore use and other hazardous areas exposed to gases and dust

Standards

UL 2225 | ABS Approved | ANSI/ASME B1.20.1 | ATEX Sira 13ATEX1068X/13ATEX4074X | ATEX/IECEx II 2 GD/II 1D Ex d IIC Gb Ex e IIC Gb Ex ta IIIC Da/II 3G Ex nR IIC Gc I M2 Ex d I Mb Ex e I Mb | ATEX Gas Groups IIA/IIB/IIC Ex d I Ex e I | ATEX 94/9/CE II 2G 3G 1D | CCOE/PESO Certified | BS 6121 | cCSA E60079-0/E60079-1/E60079-7 | cCSAus 101909 | CE DC07001 | CSA C22.2 File No. 174 | DNV Approved | EN/IEC 60529 | IECEx SIR 13.0023X/SIM 14.0006 | IEC 60079-0/60079-1/60079-7/60079-15/60079-31/61241-0/61241-1 | ISO 965 | LLOYDS Approved | NEC/CEC Class I Div 1 Groups B C D/Class II Div 2 Group E F G/Class III Div 2 Ex d IIC/Ex e IIC/Ex nR II | Deluge Test DTS 01:1991 | INMETRO TUV 12.0619X | EURASEC TC RU C-GB.05.B.00138 | KCC Certified

Features

Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable

Specifications

Cable Openings:2.41 to 2.68 in
Cable Type:Exterior Braid Armored/Unarmored
Connection Type:3 in NPT
Country of Origin:GB
Dimensions:1.85 in L x 3.64 in W
Material:316L Stainless Steel
Series:A2F Series
Temperature Rating:-60 to 130 deg C
Trade Size:75
