75A2F3005 APN

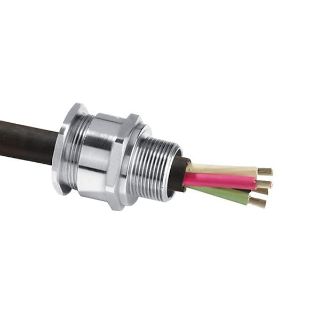

Picture of 75A2F3005 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75A2F3005
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$911.72 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® A2F Series Nickel Plated Brass Cable Glands are suitable for unarmored and exterior braid armor with protective sheath cable certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland, Straight, Series: A2F, 3 in NPT Thread, 2.41 to 2.68 in Cable Dia, 0.59 in Thread Length, -60 to 130 deg C, Brass, Nickel Plated, 1.85 in L

Application

For unarmored cables

Standards

ABS Approved | ATEX 94/9/CE EX II 2G 3G 1D | ATEX Sira 13ATEX1068X/13ATEX4074X | CE DC07001 | CSA Certified | CCOE/PESO Certified | DNV Approved | Deluge Protection Compliance DTS01:91 | EN/IEC 60529 IP66/IP67/IP68 | ATEX/IECEx Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc | IECEx SIR 13.0023X | IECEx SIM 14.0006 | KCC Certified | LLOYDS Approved

Features

Elastomer displacement seal for unarmored cable provides a combined flameproof and weatherproof seal on the outer sheath of the cable

Specifications

Cable Diameter:2.41 to 2.68 in
Country of Origin:GB
Dimensions:1.85 in L
Finish:Nickel Plated
Material:Brass
Series:A2F
Temperature Rating:-60 to 130 deg C
Thread Length:0.59 in
Thread Size:3 in NPT
