75CB320320 RND

Name: 75CB320320 RND
Brand: Rexnord
SKU: 75CB320320 RND
Price: 1,518.91 USD
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

75CB320320

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$1,518.91 / EA

Description

Rexnord Thomas®

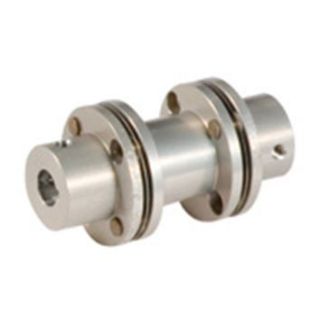

The Thomas CB style miniature coupling has both hubs extended to accept two oversized shafts.

Center Member Material:	Aluminum Alloy
Continuous Torque Rating Max:	440 in lb
Coupling Coating:	None
Coupling Size:	75
Coupling Style:	Miniature
Coupling Type:	Flexible Disc
Disc Pack Material:	Stainless Steel
Distance Between Shaft Ends:	2.1250 in
Hardware Coating:	None
Hardware Material:	Brass
Horsepower:	209 hp
Hub Barrel Outside Diameter Hub 1:	1.625 in
Hub Barrel Outside Diameter Hub 2:	1.625 in
Hub Bore Fit Hub 1:	Clamped
Hub Bore Fit Hub 2:	Clamped
Hub Length Hub 1:	1.375 in
Hub Length Hub 2:	1.375 in
Hub Material Hub 1:	Aluminum Alloy
Hub Material Hub 2:	Aluminum Alloy
Hub Straight Bore Diameter Hub 1 Nom:	0.6250 in
Hub Straight Bore Diameter Hub 2 Nom:	0.6250 in
Hub Style Hub 1:	Standard
Hub Style Hub 2:	Standard
Major Coupling Outside Diameter:	2.5000 in
Model:	75
Moment of Inertia:	8.61 lb-in2
Number of Keyways Hub 1:	0
Number of Keyways Hub 2:	0
Number of Setscrews Hub 1:	2
Number of Setscrews Hub 2:	2
Operational Misalignment Capacity (Angular) [Max]:	0.67 °
Operational Misalignment Capacity (Axial) [Max]:	0.031 in
Operational Misalignment Capacity (Parallel) [Max]:	0.028 in
Overall Coupling Length Nom:	5.000 in
Peak Torque Rating:	1,078,440 in lb
Speed Max:	30,000 rpm
Tube Outside Diameter:	1.63 in
