75CBC060060 RND

Name: 75CBC060060 RND
Brand: Rexnord
SKU: 75CBC060060 RND
Price: 2,208.41 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

75CBC060060

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,208.41 / EA

Description

Brand Name

Rexnord Thomas®

Description

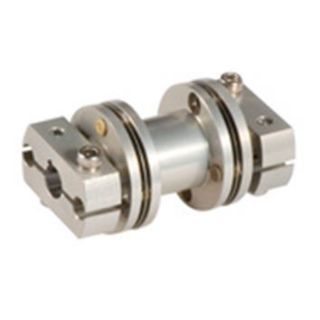

The Thomas CBC style miniature coupling offers clamping hubs that are an integral part of the coupling. The clamping hubs assure positive fit on the shafts. There are not loose parts to handle during installation.

Specifications

Center Member Material:	Aluminum Alloy
Continuous Torque Rating Max:	440 in lb
Coupling Coating:	None
Coupling Size:	75
Coupling Style:	Miniature
Coupling Type:	Flexible Disc
Disc Pack Material:	Stainless Steel
Distance Between Shaft Ends:	2.1250 in
Hardware Coating:	None
Hardware Material:	Brass
Horsepower:	209 hp
Hub Barrel Outside Diameter Hub 1:	1.625 in
Hub Barrel Outside Diameter Hub 2:	1.625 in
Hub Bore Fit Hub 1:	Clamped
Hub Bore Fit Hub 2:	Clamped
Hub Length Hub 1:	1.375 in
Hub Length Hub 2:	1.375 in
Hub Material Hub 1:	Aluminum Alloy
Hub Material Hub 2:	Aluminum Alloy
Hub Straight Bore Diameter Hub 1 Nom:	0.5000 in
Hub Straight Bore Diameter Hub 2 Nom:	0.5000 in
Hub Style Hub 1:	Standard
Hub Style Hub 2:	Standard
Major Coupling Outside Diameter:	2.5000 in
Model:	75
Moment of Inertia:	8.61 lb-in2
Number of Keyways Hub 1:	0
Number of Keyways Hub 2:	0
Number of Setscrews Hub 1:	2
Number of Setscrews Hub 2:	2
Operational Misalignment Capacity (Angular) [Max]:	0.67 °
Operational Misalignment Capacity (Axial) [Max]:	0.031 in
Operational Misalignment Capacity (Parallel) [Max]:	0.028 in
Overall Coupling Length Nom:	5.000 in
Peak Torque Rating:	1,078,440 in lb
Speed Max:	30,000 rpm
Tube Outside Diameter:	1.63 in
