75E1FW5 APN

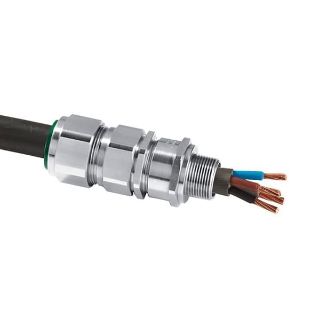

Picture of 75E1FW5 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75E1FW5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,729.74 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® E1FW Nickel Plated Brass Cable Glands are for Single Wire Armored cables (SWA with wire and lead sheath). They are certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland, Straight, Series: E1FW, M75 Thread, 2.63 to 3.09 in Cable Dia, 0.59 in Thread Length, -60 to 130 deg C, Brass, Nickel Plated

Application

For use in hazardous areas with single wire armor (SWA) cable

Standards

ABS Certified | ATEX 94/9/CE EX II 2G 3G 1D | ATEX Sira 13ATEX1071X/13ATEX4074X/13ATEX4077X | ATEX/IECEx Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Ex ta IIIC Da | cCSAus Certified | CCOE/PESO Certified | CE DC07001 | DNV Approved | Deluge Protection Compliance DTS01:91 | EN/IEC 60529 IP66 | EURASEC TC RU C-GB.05.B.00138 | IECEx SIR 13.0026X/IECEx SIM 14.0007X | INMETRO TUV 12.0618X | KCC Certified | LLOYDS Approved | NEC/CEC Class I Division 2 Group A B C D/Class II Division 2 Group E, F and G/Class III/Class I Zone 1 AEx e II, AEx nR II/Ex d IIC, Ex e IIC, Ex nR II

Features

  • Cable gland with elastomer seal for use in hazardous areas with single wire armor (SWA) cable
  • The cable gland allows mechanical cable retention and earth continuity via armor termination
  • A detachable armor cone and anyway clamping ring arrangement facilitates remote make off and enables cable to be disconnected from the equipment
  • Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure
  • Sealing technique: inner displacement seal concept and LRS outer seal (load retention seal)
  • Constructional feature flameproof

Specifications

Cable Diameter:2.63 to 3.09 in
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:E1FW
Temperature Rating:-60 to 130 deg C
Thread Length:0.59 in
Thread Size:M75
