75PX2KX4 APN

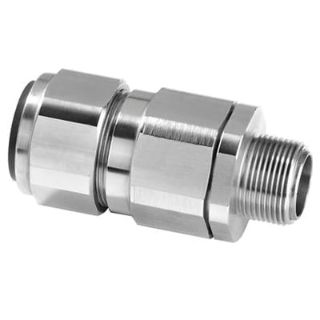

Picture of 75PX2KX4 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75PX2KX4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7,416.48 / EA

Description

Brand Name

Appleton®

Type

Compound Barrier Constructional Feature Explosionproof Straight

Description

Appleton® Cable Gland Connector, Compound Barrier Constructional Feature Explosionproof Straight, Series: PX2KX, 75 Trade, Cable Openings: 2.63 to 3.09 in, Jacketed/Marine Shipboard/Wire Braid Armored Cable, M75 Connection, 316L Stainless Steel, 4.29 in W Dimensions

Application

For use in hazardous locations

Standards

UL 2225 | ABS Approved | ATEX Sira 13ATEX1072X/Sira 13ATEX4078X | ATEX/IECEx Class I Zone 1/Ex d IIC Gb/Ex e IIC Gb/Ex ta IIIC Da | cCSAus 101909 | CSA C22.2 File No. 174 | DNV Approved | IEC 60079-0/60079-1/60079-7/60079-15/60079-31 | LLOYDS Approved | NEC/CEC Class I Div 1/2 Group A B C D/Class II Div 1/2 Group E F G/Class III | Shell/ERA Deluge Test DTS 01:1991

Features

  • Connector provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores
  • Connector provides mechanical cable retention and electrical continuity via armor termination
  • PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored cables
  • Armor termination - removable armor cone and ring
  • Sealing area - displacement seal concept
  • Without entry thread seal

Specifications

Cable Openings:2.63 to 3.09 in
Cable Type:Jacketed/Marine Shipboard/Wire Braid Armored
Connection Type:M75
Country of Origin:GB
Dimensions:4.29 in W
Material:316L Stainless Steel
Series:PX2KX
Trade Size:75
