75SC2KX2505 APN

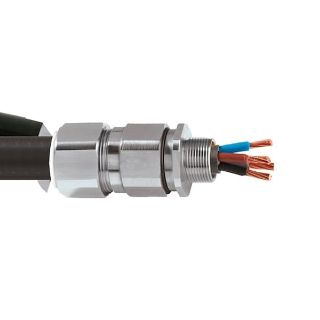

Picture of 75SC2KX2505 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75SC2KX2505
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,843.44 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® C2KX Marine Cable Connectors are for armor braid shipboard cable and all IEC braid cables is suitable for ordinary and wet locations and provides mechanical retention and electrical continuity via a removable armor termination.
Appleton® Cable Gland Connector, Straight, Series: C2KX, 75S Trade, Cable Openings: 2.32 to 2.84 in, Wire Braid Armor/Jacketed/Marine Shipboard Cable, 2-1/2 in NPT Connection, Brass, Nickel Plated

Application

For armor braid shipboard cable and all IEC braid cables is suitable for ordinary and wet locations and provides mechanical retention and electrical continuity via a removable armor termination

Standards

ATEX/IECEx II 2 GD/II ID/EX e IIC Gb/Ex ta IIIC DaEx e ll | CAN/CSA E60079-0/7/C22.2 #60529:05 | CSA 101909 | CSA C22.2 #0.18.3/94.1/94.2 | NEC/CEC Class I/Division 2 Group A/B/C/D | NEC/CEC Class I/Zone 1 or 2/AEx e II/AEx nR II | NEMA 4X IP66/IP67/IP68 | UL 514B | UL E200163/E256367

Features

  • Connector provides an environmental seal on the cable outer jacket and is UL Listed for NPT or metric entry threads
  • The C2KX forms part of a comprehensive range of deluge proof connectors for marine shipboard and IEE45 armor jacketed cables
  • Permitted for use in division 2 areas on equipment without internal source of ignition
  • Armor termination removable armor cone and ring
  • Sealing technique: displacement seal concept
  • Sealing area: outer sheath
  • Entry thread seal not supplied
  • Constructional feature delugeproof, oil resistant
  • Low smoke fumes thermoplastic elastomer seal
  • Standard 2-1/2 in NPT connection

Specifications

Cable Openings:2.32 to 2.84 in
Cable Type:Wire Braid Armor/Jacketed/Marine Shipboard Cable
Connection Type:2-1/2 in NPT
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:C2KX
Trade Size:75S
