75SPX2K5 APN

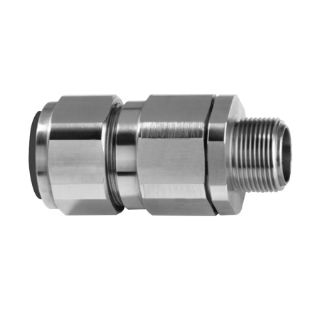

Picture of 75SPX2K5 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75SPX2K5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,349.60 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® PX2K Series Nickel Plated Brass Cable Glands are suitable for all types of armored cables (braid, tape, wire and lead sheath version) certified for enclosures with the following protection modes: Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and D dust environment. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland, Straight, Series: PX2K, M75 Thread, 2.32 to 2.84 in Cable Dia, 0.59 in Thread Length, -60 to 100 deg C, Brass, Nickel Plated

Application

For use in hazardous areas with all types of armored cables

Standards

ABS Approved | ATEX 94/9/CE EX II 2G 3G 1D | ATEX Sira 13ATEX1073X/13ATEX4079X | ATEX/IECEx Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Ex ta IIIC Da | ATEX/IECEx Zone 1 and 2 21 and 22 II 2 GD IP66/68 | cCSAus 101909 | CCOE/PESO Certified | CE DC07001 | CSA Standard: C22.2 174 | DNV Approved | Deluge Protection Compliance DTS01:91 | EN/IEC 60529 IP66/IP67/IP68 | EURASEC TC RU C-GB.05.B.00138 | IECEx SIR 13.0028X | IECEx SIM 14.0007X | INMETRO TUV 11.0374X | LLOYDS Approved | NEC/CEC Class I Division 1 and 2 Group A B C D/Class II Division 1 and 2 | Group E F G/Class III/NEMA 4X | UL 2225/E201187

Features

  • Cable gland with compound barrier seal for use in hazardous areas with all types of armored cables (braid, tape and wire)
  • The cable gland provides mechanical cable retention and earth continuity via cable armor termination
  • A combined detachable armor cone and compound tube, together with anyway universal clamping ring arrangement allows the cable to be easily disconnected from the equipment
  • The cable gland is IP66/68 and complies with deluge protection tests
  • The cable gland is supplied with epoxy resin and two detachable armor cones
  • Constructional feature flameproof

Specifications

Cable Diameter:2.32 to 2.84 in
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:PX2K
Temperature Rating:-60 to 100 deg C
Thread Length:0.59 in
Thread Size:M75
