75SPX2KX3005 APN

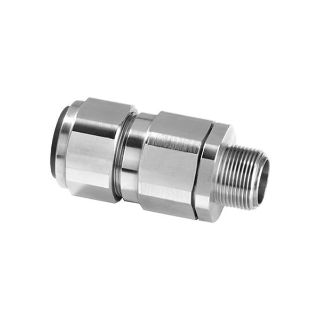

Picture of 75SPX2KX3005 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75SPX2KX3005
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,151.30 / EA

Description

Brand Name

Appleton®

Type

Straight

Description

Appleton® Cable Gland Connector, Straight, Series: PX2KX, 75S Trade, Cable Openings: 2.32 to 2.84 in, Wire Braid Armor/Jacketed/Marine Shipboard Cable, 3 in NPT, Brass, Nickel Plated

Application

Explosionproof class I division 1 brass cable connector suitable for wire braid armor or tape

Standards

ABS Approved | ATEX Sira 13ATEX1072X/Sira 13ATEX4078X | ATEX/IECEx Class I Zone 1/Ex d IIC Gb/Ex e IIC Gb/Ex ta IIIC Da | cCSAus 101909 | CSA C22.2 #174 | DNV Approved | IEC: 60079-0/60079-1/60079-7/60079-15/60079-31 | LLOYDS Approved | NEC/CEC Class I Division 1 and 2 Group A B C D/Class II Division 1 and 2 Group E F G/Class III | NEMA 4X: IP66/IP67/IP68 | Shell/ERA Deluge Test DTS 01:1991 | UL 2225/E201187

Features

  • Connector provides an environmental seal on the cable outer jacket and an explosionproof compound barrier seal around the cable inner cores
  • Connector provides mechanical cable retention and electrical continuity via armor termination
  • PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored cables
  • Armor termination removable armor cone and ring
  • Sealing area: displacement seal concept
  • Low smoke fumes thermoplastic elastomer seal
  • Epoxy putty
  • Entry thread seal not supplied
  • Constructional feature explosionproof
  • Standard 3 in NPT connection

Specifications

Cable Openings:2.32 to 2.84 in
Cable Type:Wire Braid Armor/Jacketed/Marine Shipboard Cable
Connection Type:3 in NPT
Country of Origin:GB
Finish:Nickel Plated
Material:Brass
Series:PX2KX
Trade Size:75S
