75SPX2KXRX2505X APN

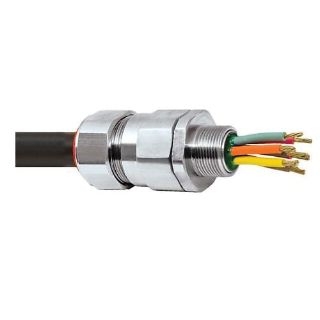

Picture of 75SPX2KXRX2505X APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75SPX2KXRX2505X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,279.54 / EA

Description

Brand Name

Appleton®

Type

Constructional Feature Explosionproof Liquid Resin Barrier Oil-Resistant Straight

Description

Appleton® PX2KX-REX liquid resin barrier type cable connectors are explosionproof, class I, division 1 brass cable connectors suitable for wire braid armor or tape. The gland utilizes a liquid pour resin seal, that vastly reduces installation time and associated costs. This solution is particularly effective on multi-core cables where traditional compound is difficult and time consuming to apply.
Appleton® Cable Gland Connector, Constructional Feature Explosionproof Liquid Resin Barrier Oil-Resistant Straight, Series: PX2KX-REX, 75S Trade, Cable Openings: 2.32 to 2.84 in, Jacketed/Marine Shipboard/Wire Braid Armored/Tape Cable, 2-1/2 in NPT Connection, Brass, Nickel Plated, 3.85 in W Dimensions

Application

For use in hazardous locations

Standards

UL 2225 | ABS Approved | ATEX Sira 13ATEX1072X/Sira 13ATEX4078X | ATEX/IECEx Class I Zone 1/Ex d IIC | cCSAus 101909 | CSA C22.2 File No. 174 | DNV Approved | LLOYDS Approved | NEC/CEC Class I Div 1/2 Group A B C D/Class II Div 1/2 Group E F G/Class III | Shell/ERA Deluge Test DTS 01:1991

Features

  • Utilizes RapidEx high speed liquid resin sealing compound included with each gland
  • The gland utilizes a liquid pour resin seal, that vastly reduces installation time and associated costs
  • This solution is particularly effective on multi-core cables where traditional compound is difficult and time consuming to apply
  • Connector provides an environmental seal on the cable outer jacket and an explosionproof liquid resin barrier seal around the cable inner cores
  • Connector provides mechanical cable retention and electrical continuity via armor termination
  • PX2KX forms part of a comprehensive connector range for marine shipboard and IEE45 armored and jacketed cables
  • Armor termination - removable armor cone and ring
  • Sealing area - displacement seal concept
  • Without entry thread seal

Specifications

Cable Openings:2.32 to 2.84 in
Cable Type:Jacketed/Marine Shipboard/Wire Braid Armored/Tape
Connection Type:2-1/2 in NPT
Country of Origin:GB
Dimensions:3.85 in W
Finish:Nickel Plated
Material:Brass
Series:PX2KX-REX
Trade Size:75S
