75SPXREX5X APN

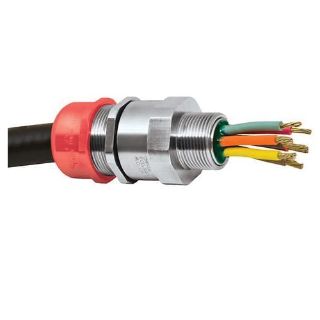

Picture of 75SPXREX5X APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75SPXREX5X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,966.58 / EA

Description

Brand Name

Appleton®

Type

Constructional Feature Explosionproof Flameproof Liquid Resin Barrier Straight

Description

Appleton® PXSS2K-REX series liquid resin barrier type cable connectors are flameproof class I cable connectors suitable for unarmored, extra hard usage, tray (TC) and shipboard cables. The gland utilizes a liquid pour resin seal that vastly reduces installation time and associated costs. This solution is particularly effective on multi-core cables where traditional compound is difficult and time consuming to apply.
Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Liquid Resin Barrier Straight, Series: PXSS2K-REX, 75S Trade, Cable Openings: 2.08 to 2.44 in, Shipboard/Tray/Type SO/Unarmored Cable, M75 Connection, Brass, Nickel Plated, -60 to 100 deg C, 4.49 in L x 3.47 in W Dimensions

Application

For use in hazardous locations

Standards

UL 2225 | ABS Approved | ATEX Sira 13ATEX1072X/Sira 13ATEX4078X | ATEX/IECEx Class I Zone 1/Ex d IIC/Ex e IIC/Ex nR II/Ex tD/Zones 1/2: Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Zone 20 Ex ta IIIC Da | ATEX 94/9/CE II 2G 3G 1D | CCOE/PESO Certified | cCSAus 101909 | CE DC07001 | CSA C22.2 File No. 174 | DNV Approved | EN/IEC 60529 | IECEx SIR 13.0027X/SIM 14.0008X | LLOYDS Approved | NEC/CEC Class I Div 1 Group C D/Class I Div 2 Group A B C D/Class II Group E F G/Class III/Class I Zone 1/2 | Deluge Test DTS 01:1991 | INMETRO TUV 12.2073X | EURASEC TC RU C-GB.05.B.00138

Features

  • Utilizes RapidEx high speed liquid resin sealing compound included with each gland
  • The gland utilizes a liquid pour resin seal, that vastly reduces installation time and associated costs
  • This solution is particularly effective on multi-core cables where traditional compound is difficult and time consuming to apply
  • Connector provides an environmental seal on the cable outer jacket and an explosionproof liquid resin barrier seal around the cable inner cores
  • Sealing area - displacement seal concept
  • Sealing area - inner liquid resin barrier and outer sheath
  • Without entry thread seal

Specifications

Cable Openings:2.08 to 2.44 in
Cable Type:Shipboard/Tray/Type SO/Unarmored
Connection Type:M75
Country of Origin:GB
Dimensions:4.49 in L x 3.47 in W
Finish:Nickel Plated
Material:Brass
Series:PXSS2K-REX
Temperature Rating:-60 to 100 deg C
Trade Size:75S
