75T33004 APN

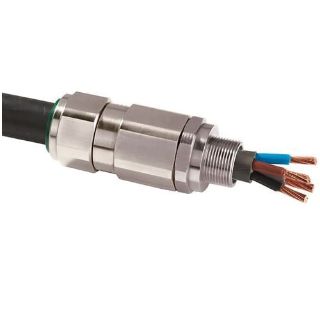

Picture of 75T33004 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
75T33004
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$7,892.12 / EA

Description

Brand Name

Appleton®

Type

Constructional Feature Explosionproof Flameproof Increased Safety Straight

Description

Appleton® T3 series nickel plated brass cable glands are suitable for all types of armored cable certified for enclosures with the following protection modes, Ex d flameproof IIB or IIC (as per 10.4.2 of IEC 60079-14), Ex e increased safety, Ex nR restricted breathing and Ex d flameproof. They are ideal for onshore and offshore use and for other hazardous areas exposed to gases and dust.
Appleton® Cable Gland Connector, Constructional Feature Explosionproof Flameproof Increased Safety Straight, Series: T3 Series, 75 Trade, Cable Openings: 2.63 to 3.09 in, Armored Cable, 3 in NPT Connection, 316L Stainless Steel, -60 to 130 deg C, 4.29 in W Dimensions

Application

For onshore and offshore use and other hazardous areas exposed to gases and dust

Standards

UL 2225 | ABS Approved | ANSI/ASME B1.20.1 | ATEX Sira 13ATEX1073X/13ATEX4079X | ATEX/IECEx Class I Zone 1/2-21/22 II 2 GD/Zones 1/2 Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Zone 20 Ex ta IIIC Da | ATEX 94/9/CE II 2G 3G 1D | CCOE/PESO Certified | BS 6121 | cCSAus 101909 | CE DC07001 | CSA C22.2 File No. 174 | DNV Approved | EN/IEC 60529 | IECEx SIR 13.0028X/SIM 14.0007X | IEC 60079-0/60079-1/60079-7/60079-15/60079-31/61241-0/61241-1 | ISO 965 | LLOYDS Approved | NEC/CEC Class I Div 1 Groups A B C D/Class II Div 2 Group E F G/Class III | Deluge Test DTS 01:1991 | INMETRO TUV 12.2073X | EURASEC TC RU C-GB.05.B.00138

Features

  • This product utilizes a unique compensating displacement seal (CDS) system which provides full compatibility with restricted breathing equipment
  • The CDS system is designed to alleviate any pressure on soft bedded cables
  • The cable gland allows mechanical cable retention and earth continuity via armor termination
  • A reversible armor cone and AnyWay universal clamping ring arrangement allows the cable to be easily disconnected from equipment
  • The cable gland is IP66/68 rated with deluge protection to DTS01: 91
  • Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure
  • Without entry thread seal

Specifications

Cable Openings:2.63 to 3.09 in
Cable Type:Armored
Connection Type:3 in NPT
Country of Origin:GB
Dimensions:4.29 in W
Material:316L Stainless Steel
Series:T3 Series
Temperature Rating:-60 to 130 deg C
Trade Size:75
