760061.0000 LST

Name: 760061.0000 LST
Brand: Lutze
SKU: 760061.0000 LST
Price: 16.27 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lutze

Manufacturer part number:

760061.0000

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$16.27 / EA

Description

Brand Name

LUTZE

Type

Non-pluggable

Description

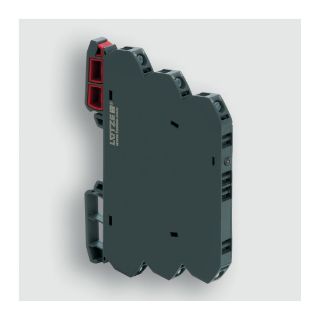

The LCIS relay product series offer compact, innovative terminal block style relays for a wide range of industrial applications. At a height of 68 mm, LCIS relays are ideal for DIN rail mounting in low depth distribution enclosures.

LUTZE Electromechanical Relay, Non-pluggable, Series: LCIS, 6 A, 144 W Power, 50/60 Hz Frequency, 230 VAC/VDC Coil, SPDT Contact Form, 5 mA at 17 VAC/VDC/6 A at 250 VAC/VDC Contact, 1 Pole, DIN Rail Mounting, Screw Terminal, Green LED Display, IP20 Enclosure, -25 to 60 deg C, 6.2 mm W x 73 mm D x 93 mm H

Application

For industrial applications

Standards

cULus Listed | EN 60947-5-1 | UL 508 | DNV GL

Features

AC/DC outputs
Clear identification of terminal markings to reduce risk of wiring errors
Narrow 6.2 mm housing width
LED status indicator
2 to 16 pole jumper accessories

Specifications

Amperage Rating:	6 A
Coil Voltage:	230 VAC/VDC
Contact Form:	SPDT
Contact Rating:	5 mA at 17 VAC/VDC/6 A at 250 VAC/VDC
Country of Origin:	DE
Dimensions:	6.2 mm W x 73 mm D x 93 mm H
Display Type:	Green LED
Enclosure Type:	IP20
Frequency Rating:	50/60 Hz
Mounting Type:	DIN Rail
Number of Poles:	1
Power Rating:	144 W
Series:	LCIS
Temperature Rating:	-25 to 60 deg C
Terminal Type:	Screw
