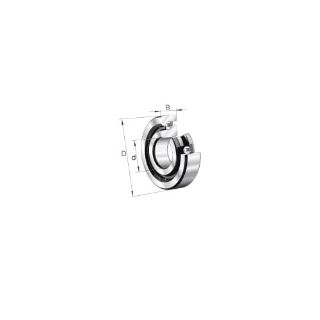

7602020-TVP INA

Axial angular contact ball bearings are available as single, double or triple row ready-to-fit units. They are self-retaining and comprise thick-wall, geometrically stable outer rings, ball and cage assemblies and one-piece or two-piece inner rings. In several series, the outer ring has through holes for simple flange mounting to the adjacent construction. The bearing rings are matched to each other such that a defined preload is achieved when the rings are clamped in place using a precision locknut.

FAG Axial Angular Contact Ball Bearing, Series: 7602, 20 mm Bore Dia, 47 mm Outside Dia, 1 Row, 14 mm W, 60 deg Contact, Open Closure, 19100 N Dynamic/38000 N Static/1670 N Fatigue, Steel Bearing, Polyamide Cage, 9200 rpm Maximum, -30 to 120 deg C
